Temperature Sensor Humidity Transmitter with Wall Mount LCD Display, 4-20mA for Green House Machine Equipment

Temperature Sensor Humidity Transmitter Wall Mount LCD Display Temperature and Humidity Sensor 4-20mA for Green House Machine Equipment

Temperature Sensor Humidity Transmitter with Wall Mount LCD Display, 4-20mA for Green House Machine Equipment

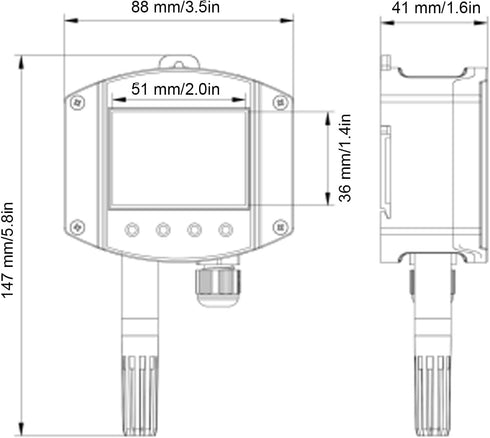

Specification: Item Type: Temperature Sensor Product Size: Approx. 147 x 88 x 41mm / 5.79 x 3.46 x 1.61in Power Supply Wiring: Wide voltage 10~30V DC power input. Product Overview: The transmitter is an industrial wall mounted enclosure with a high degree of protection. The circuit adopts industrial grade microprocessor chip and high accuracy temperature and humidity sensor to ensure excellent reliability, high accuracy and interchangeability of the product. Parameter: Model RS-WS-120-2D-LCD DC Power Supply (Default) DC 10~30V Maximum Power Consumption Current Output 1.2W Voltage Output 1.2W A Accuracy Humidity ±2%RH(60%RH,25?) Temperature ±0.4?(25?) B Accuracy Humidity ±3%RH(60%RH,25?) Temperature ±0.5?(25?) Temperature Range -40?~+120?, Default -40?~+80? Humidity Range 0%RH-100%RH Transmitter Circuit Working Temperature and Humidity -20?~+60?, 0%RH~95%RH (NonCondensing) Probe Operating Temperature -40?~+120?, Default -40?~+80? Probe Working Humidity 0%RH-100%RH Long Term Stability Humidity =1%RH/y Temperature =0.1?/y Response Time Humidity =8s(1m/s Wind Speed) Temperature =25s(1m/s Wind Speed) Output Current Output 4~20mA Load Capacity Voltage Output Output Resistance =250O Current Output =600O Hole Size (Approx.) 70mm / 2.76in Parameter Settings Modify directly through software settings or buttons. Specific Wiring: Circuit Identification Description Power Supply VCC Power Positive GND Power Negative or Negative Output TH Positive Temperature RH Package List: 2 x Screw 2 x Wall Plug 1 x Temperature Sensor 1 x User Manual

Key Features

• ✅ Simple to Use: You can easily set the parameters through the buttons, and the good dust ensures high work safety.The light weight together with compact size largely simplifies both wall mount and slide rail installation.

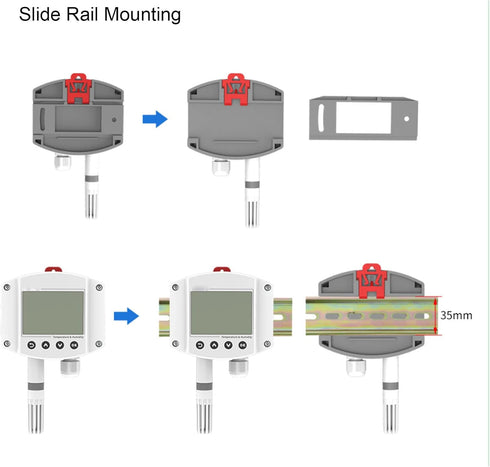

• ✅ Reliable Work: Combining dedicated analogue circuit and 10-30V wide voltage input, the temp meter has excellent durability.Slide Rail Installation: There is a slide rail mounting plate on the back of the transmitter, remove the mounting plate first. The transmitter slides directly into a standard 35 rai

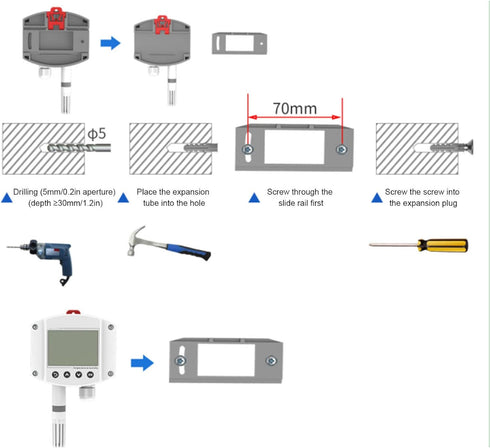

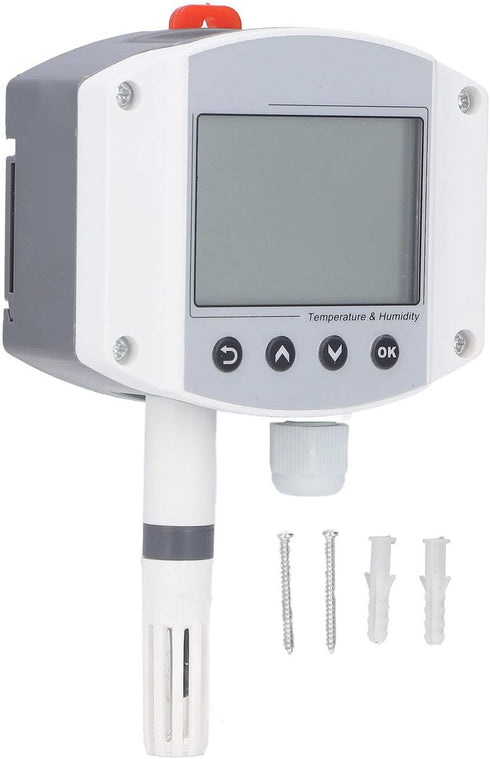

• ✅ Easy to Install: Wall Mounted Installation: The back of the transmitter is equipped with a slide rail mounting plate, first remove the mounting plate. There are two wall plugs and two self tapping screws in the accessories. First, punch two holes with a diameter of 5mm and a depth of =30mm on the wall (the hole spacing is 70mm). After inserting the wall plug, fix the slide rail mounting plate on the wall with self tapping screws, and finally slide it into the transmitter.
• ✅ Clear Display: LCD screen enables clear digital display as well as more convenient to save your time and labour.Adopts standard industrial interface 4~20mA analogue output, can be connected to on site digital display, PLC, inverter, industrial control host and other equipment, and reliable, beautiful appearance, easy installation.
• ✅ Better Sensor: Able to detect temperature and humidity with high accuracy, the transmitter allows for flexible application.

✅ Product Dimensions: 5.79"W x 3.46"H

✅ Color: defult
