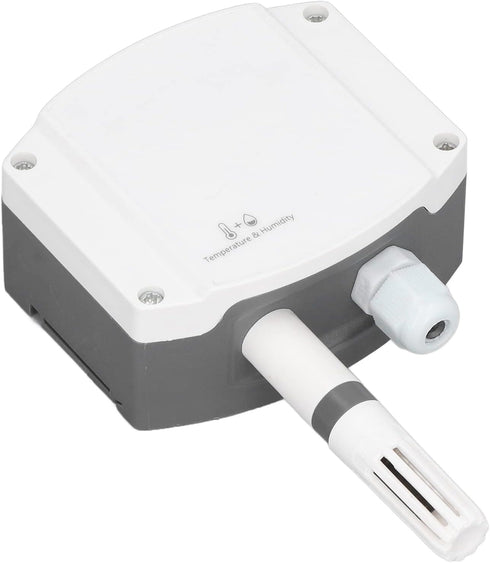

Temperature and Humidity Transmitter, 4-20mA DC 10-30V High Accuracy Analog Sensor for Industrial, Agricultural Use

Temperature and Humidity Transmitter, 4-20mA DC 10-30V High Accuracy Analog Temperature Humidity Transmitter Sensor IP65 Wall Mounted Humidity Sensor for Industrial, Agricultural, Greenhouse

Temperature and Humidity Transmitter, 4-20mA DC 10-30V High Accuracy Analog Sensor for Industrial, Agricultural Use

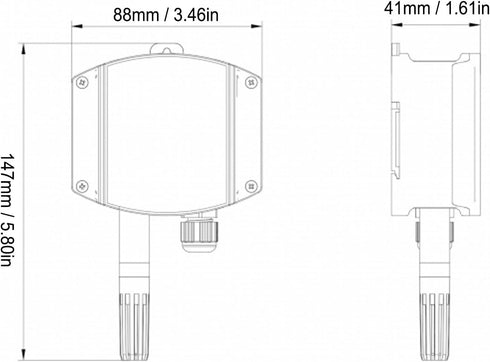

Specification: Item Type: Temperature Humidity Transmitter Product Size: Approx. 147 x 88 x 41 mm / 5.8 x 3.5 x 1.6 in Output Interface Wiring: The device is equipped with 2 independent analog outputs as standard Weight: Approx. 157g / 5.5oz Specific Wiring: Circuit Identification Instruction Power Supply VCC Positive Power Supply GND Negative Power Supply Output TH Positive Temperature RH Positive Humidity (Note: The device does not provide a communication line by default) Parameter: Maximum Power Consumption Current Output 1.2W Voltage Output 1.2W Temperature Range -40?~+120?, default -40?~+80? Humidity Range 0%RH-100%RH Transmitter Circuit Working Temperature And Humidity -20?~+60?, 0%RH~95%RH A9:C28(non B25condensing) Probe Operating Temperature -40?~+120?, default -40?~+80? Probe Working Humidity 0%RH-100%RH Long Term Stability Humidity =1%RH/y Temperature =0.1?/y Response Time Humidity =8s(1m/s wind speed) Temperature =25s(1m/s wind speed) Output Current Output 4-20mA Load Capacity Voltage Output Output resistance=250O Current Output =600O Hole Size 70mm/2.8in Parameter Settings Set By Software Product Model: RS- Company Codes WS- Temperature And Humidity Transmitter, Sensor 120- 4~20mA Current Output Package List: 2 x Screw 2 x Expansion Tube 1 x Transmitter 1 x Manual

Key Features

• ✅ [ Material] Made of high quality ABS material, , wear resistant, small in size, using a dedicated analog circuit, high accuracy temperature and humidity measurement unit.

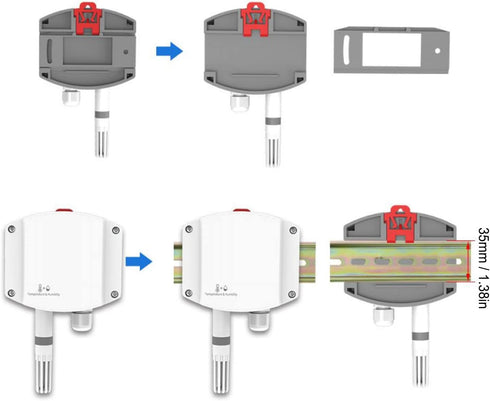

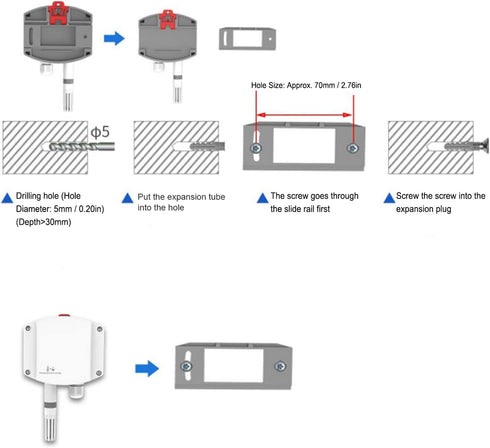

• ✅ [ And Reliable] 10~30V wide voltage range input power supply, and reliable, beautiful appearance, easy to install, can be wall mounted or rail mounted. The power supply wiring is wide voltage 10~30v dc power input
• ✅ [IP65 Dust Resistant] Industrial wall mounted high grade housing, IP65 dust resistant grade, rain and snow and good air permeability.
• ✅ [High Accuracy] The circuit adopts industrial grade microprocessor chips and high accuracy temperature and humidity sensors to ensure reliability, high accuracy and interchangeability. A accuracy humidity is ±2%RH (60%RH,25?) Temperature ±0.4?(25?), while B accuracy humidity is ±3%RH (60%RH,25?) Temperature ±0.5? (25?)
• ✅ [4~20mA Analog Output] Adopt standard industrial interface 4~20mA analog output, can be connected to on site digital display, PLC, inverter, industrial control host and other equipment
