6Pcs USB Humidifier Atomization Disc Type-C Interface DC 5V Drive Circuit Board

6Pcs USB Humidifieration Atomization Disc Type-C Interface DC 5V Atomization Drive Circuit Board

6Pcs USB Humidifier Atomization Disc Type-C Interface DC 5V Drive Circuit Board

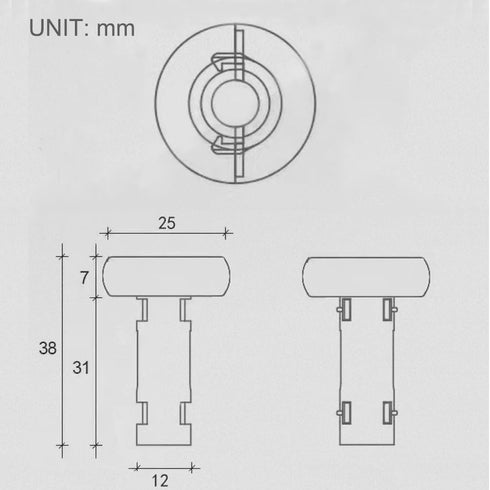

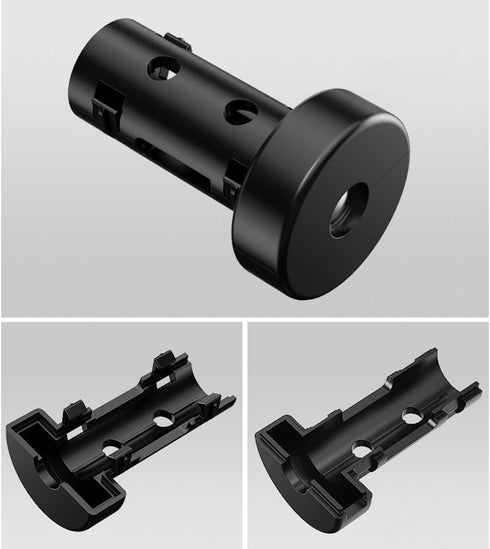

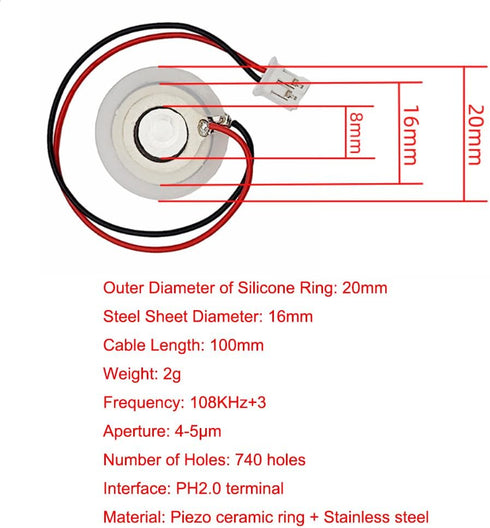

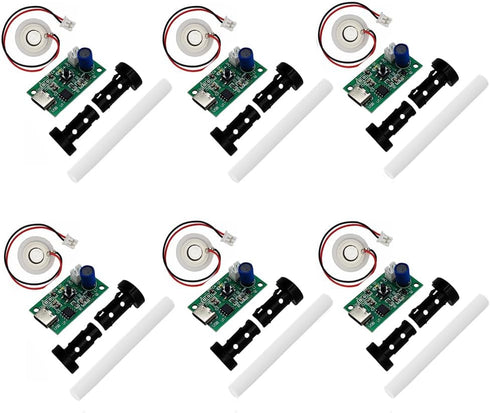

SPECIFICATIONS: Humidifier Module Parameter: Rated Voltage: DC 5V Rated Current: 300mA Power Type: Type-C socket Humidifier Interface: PH2.0 terminal Material: 1.2mm FR-4 PCB Size: 35*19mm, Weight: 4g Frequency: 108KHz+3 Power: 1.5-2W Atomization amount: Around 40-50ml/h Work Temperature: 0 ~85 Work Humidity: 10%~90%RH Microporous Atomizing Film Parameter: Steel Sheet Diameter: 16mm Outer Diameter of Silicone Ring: 20mm Cable Length: 100mm Weight: 2g Frequency: 108KHz+3 Aperture: 4-5 m Number of Holes: 740 holes Interface: PH2.0 terminal Material: Piezo ceramic ring + Stainless steel Humidifier Cotton Swab Size: 100*10mm Black Bracket Size: 38*24mm, Weight: 4g DIRECTIONS FOR USE: 1. Attach the atomizer to the circuit board. 2. USB DC 5V power supply. 3. Press the circuit board switch. 4. Atomizing plate suction water spray. NOTE: 1. Do not puncture the atomizer. 2. Can not run empty. 3. Do not use fast chargers. 4. No change circuit. 5. The circuit board must not be damp. 6. All steel sides draw water downward. 7. Rated power input. Package Inlcuding: 6 X Atomization Module Type-C Socket 6 X Microporous Atomizing Film 6 X Humidifier Cotton Swab 6 X Black Plastic Bracket

Key Features

• ✅ High-frequency oscillation, micrometer aperture, large atomization amount, fine mist particles, high spray rate, spray variety, timed shutdown.
• ✅ Two spray modes: press the switch for the first time is continuous spray mode: LED light is always on, always spray, spray 4 hours after the automatic shutdown protection. Press the switch for the second time is indirect spray mode: LED flashes, spray 10 seconds, stop spraying for 5 seconds, and so on, spray 12 hours after the automatic shutdown protection. Press the switch for the third time to turn off the machine.
• ✅ The white piezoelectric ceramic ring surface is the front spray surface, which is installed upward, All steel sheet surface is the suction surface on the back, installed downwards. The red wire is positive and the black wire is negative.

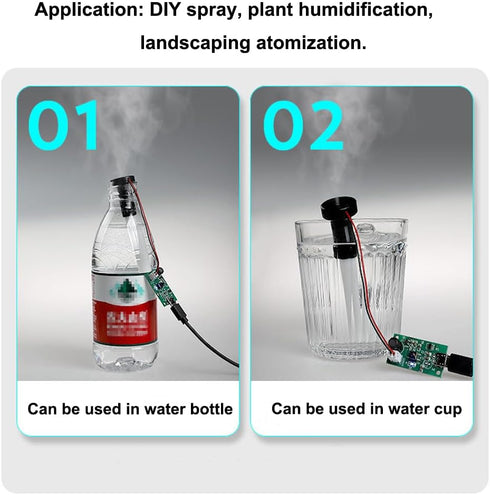

• ✅ Spray Principle: Piezoelectric ceramics drive metal plate high-frequency oscillation, ultrasonic liquid atomization. Micrometer-fine water molecules atomize water throughmicropores and disperse it into the air. Application: DIY spray, plant humidification, landscaping atomization.
• ✅ The atomizing piece needs to be used together with the circuit board with the same frequency to achieve the ideal spray amount.

✅ Product Dimensions: 1.4"D x 0.5"W x 0.7"H

✅ Color: Green+White
