6501KW2002A 6501KW2002B Washer Motor Rotor Position Sensor Switch for Kenmore LG Washing Machines

6501KW2002A 6501KW2002B Washer Motor Rotor Position Sensor Switch Compatible with Kenmore LG Washer Washing Machine Replaces AP4440680 PS3529186, Upgraded RPS Hall Sensor OEM Replacement Parts

6501KW2002A 6501KW2002B Washer Motor Rotor Position Sensor Switch for Kenmore LG Washing Machines

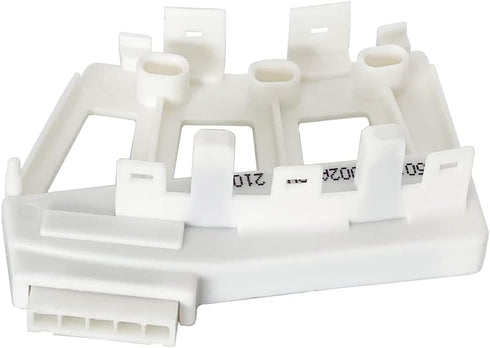

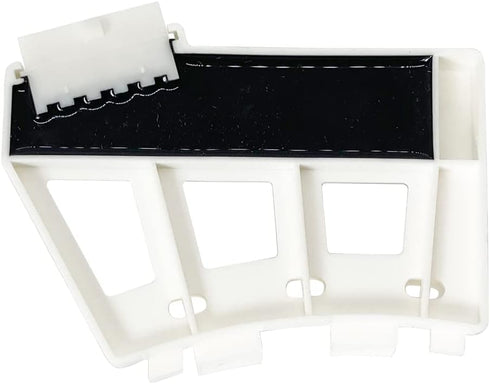

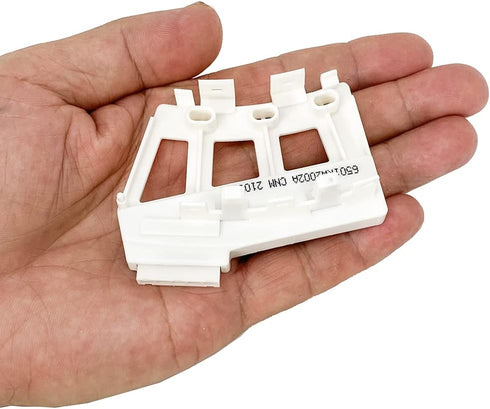

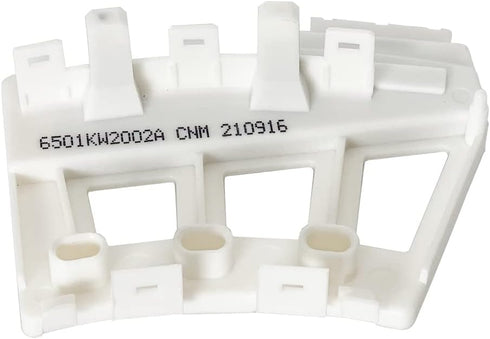

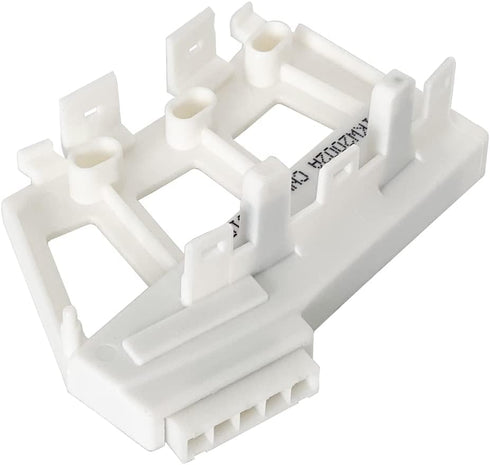

This is a replacement sensor assembly for your washer. It may also be known as a motor rotor position sensor. If your washer pumps but will not spin or agitate, you may have a damaged sensor assembly. Compatible with most top brands (LG, Kenmore) and replaces part numbers: 6501KW2002B, 1268238, AH3529186, EA3529186, PS3529186, AP4440680. The product is made of strong & durable materials that prevents cracking and failing during the installation and use process. Easy Installation: 1, Unplug the circuit, turn off hot and cold water supply valves; 2, Remove the mounting screws, take the panel off, and use a 17 millimeter socket wrench to take out the bolt. 3, Release the stator wires by removing the screws holding the stator wire retainers and the stator wire bracket to the washer; 4, Remove the six bolts holding the stator to the washer. Disconnect the plastic motor sensor or hall sensor, by pulling the wire harness from the connector on the sensor. Leave the other wire connector attached to the stator. Compatible with LG: CW2079CWD (ABWEELC), CW2079CWD (ABWEEUS), CW2079CWN (ABWEELC), CW2079CWN (ABWEEUS), WM0001HTM, WM0001HTMA (ASTEEUS), WM0532HW (ABWEEUS), WM0642HS, WM0642HW (ABWEEUS), WM0642HW/01, WM0742HGA (APGEEUS), WM0742HWA (ABWEEUS), WM1811CW, WM1832CW (ABWEEUS), WM2011HW, WM2032HS (ATTEEUS), WM2032HW (ABWEEUS), WM2042CW (ABWEEUS), WM2050CW, WM2075CW (ABWEEUS), WM2077CW (ABWEEUS), WM2077CW/00, WM2101HW (ABWEEUS), WM2140CW, WM2233HD (AFGEEUS), WM2233HS (ATTEEUS), WM2233HU (ABBEEUS), WM2233HW (ABWEEUS), WM2233HW/00, WM2240CW, WM2250CW, WM2277HB (ABPEEUS), WM2277HS (ATTEEUS), WM2277HW (ABWEEUS), WM2277HW/00, WM2301HR, WM2301HW, WM2350HRC, WM2350HWC, WM2411HW, WM2432HW (ABWEEUS), WM2442HW (ABWEEUS), WM2450HRA, WM2455HG (APGEEUS), WM2455HW, WM2487HRM (ACREEUS), WM2487HRMA (ACREEUS), WM2487HWM (ABWEEUS), WM2487HWMA (ABWEEUS), WM2487WHM, WM2496HSM (ATTEEUS), WM2496HWM (ABWEEUS), WM2497HWM, WM2501HVA, WM2501HWA, WM2601HL, WM2601HR, WM2601HW, WM2650HRA, WM2650HWA, WM2655HVA, WM2677HBM, WM2677HSM (ATTEEUS), WM2677HWM, WM2688HNM (ANBEEUS), WM2688HNMA (ANBEEUS), WM2688HWM (ABWEEUS), WM2688HWMA (ABWEEUS), WM2701HV, WM2801HLA (ARBEEUS), WM2801HRA (ACREEUS), WM2801HWA (ABWEEUS), WM2901HVA, WM3001HPA (APTEEUS), WM3001HRA (ACREEUS), WM3001HWA (ABWEEUS), WM3050CW, WM3070HRA, WM3070HRA/00, WM3070HWA, WM3150HVC, WM3150HWC, WM3250HWA, WM3360HRCA, WM3360HVCA, WM3360HWCA, WM3470HVA, WM3470HWA, WM3470HWA (00), WM3485HWA, WM3550HVCA, WM3550HWCA, WM3570HVA (00), WM3570HWA (00), WM3632HW (ABWEEUS), WM3677HW (ABWEEUS), WM3875HVCA, WM3875HWCA, WM3885HCCA, WM3885HWCA, WM3987HW, WM3988HWA (ABWEEUS), WM4070HVA, WM4070HWA, WM8000HVA, WM8000HWA, WM8500HVA, WT1001CW, WT1701CW, WT4801CW, WT5001CW, WT5070CW, WT5101HV, WT5101HW, WT5170HV, WT5170HW, WT5680HVA, WT5680HWA, WT6001HV, WT6001HW, WT7700HVA, WT7700HWA. Compatible with Kenmore: 796.29002000, 796.29002010, 796.29272000, 796.29272001, 796.29272010, 796.29272900, 796.29272901, 796.29278000, 796.29278001, 796.29278010, 796.29278900, 796.29472000, 796.29478000, 796.31412310, 796.31512210, 796.31512211, 796.31522210, 796.31523210, 796.31523211, 796.31622310, 796.31623310, 796.40272800, 796.40272900, 796.40311900, 796.40318900, 796.40441900, 796.40448900, 796.40512900, 796.40518900, 796.41022900, 796.41028900, 796.41029900, 796.41172210, 796.41272210, 796.41283311, 796.41532110, 796.41538110, 796.41542110, 796.41548110, 796.41548210, 796.41549110, 796.41549210, 796.41722000, 796.41722010, 796.41728000, 796.41728010, 796.41728900, 796.42192900, 796.42198900, 796.42199900.

Key Features

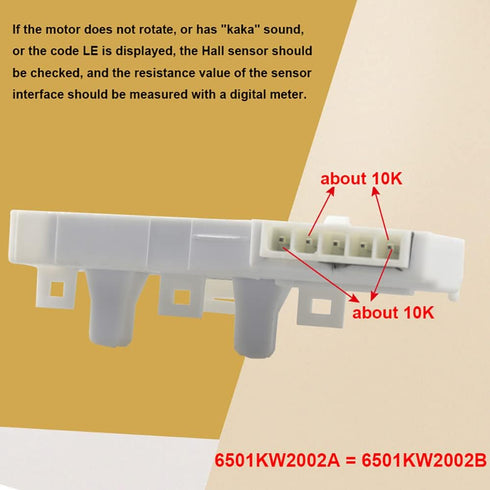

• ✅ Faults that can be repaired: If your washer pump would not tumble, not agitate, not start, spins slowly, or had "EO" error, or had "LE" (locked rotor) error on L-G washer you made to replace the rotor position sensor. To confirm that the position sensor is faulty, unplug the washer when the symptom occurs. 6501KW2002A position sensor is made of premium quality material and well-tested by the manufacturer. Ensure long-lasting and effective performance.
• ✅ Specifications: 1. This washers motor rotor position sensor part number 6501KW2002A. A high-quality exact equivalent for part numbers AP4440680, 1268238, AH3529186, EA3529186, PS3529186. Size about 2.9"x2.2" (LxW); 2. 6501KW2002A monitors the direction and speed of the spinning rotor and communicates these to the electronic control board. This part senses the position of the motor, commonly referred to as an RPS (rotor position sensor) or MPS (motor position sensor).
• ✅ Wide Compatibility: Compatible With LG- WM0532HW, WM1832CW, WM2016CW, WM2101HW, WM2240CW, WM2301HR, WM2455HG, WM2487HWM, WM2801HRA, WM2801HWA, WM3050CW, WM3170CW, WM3370HWA, WM3570HWA, WM3575CW, WM4270HVA, WM4270HWA, WM8000HVA, WM8500HVA etc. [Ken.more] - 796.28862700, 796.28869700, 796.29872700, 796.29877700, 796.31522210, 796.31523210, 796.31622310, 796.40441900, 796.40512900, 796.41538110, 796.29002000, 79629002010, 79629272000, 79629272900, 79629278000, 79629278010, etc.
• ✅ Easy to Install: Installed easy faster, saving you money, time and energy. Just takes you a few minutes to install. Firstly, disconnect electric, hot and cold water supply and drain hose. Lay washer on its back. Removed nut from center housing. Removed screws from stater. Disconnect wires with a flat screwdriver at sensor and stater. Install new sensor and put everything back together.
• ✅ Responsible Service: If customers have any questions or encounter any problems while using this rotor position sensor accessory, please contact us proactively. We will reply promptly during working hours and do our best to solve your problem.

✅ Product Dimensions: 2.87"L x 2.4"W x 1.1"H

✅ Color: White
