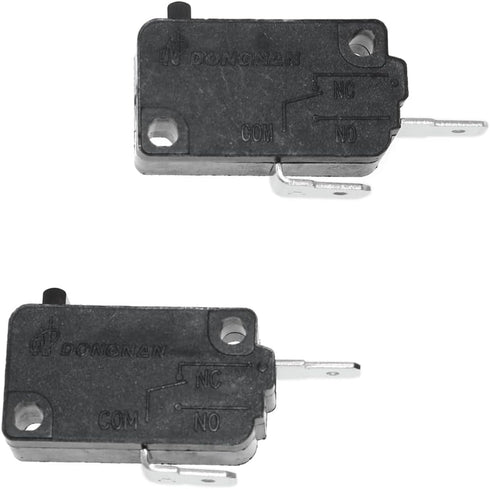

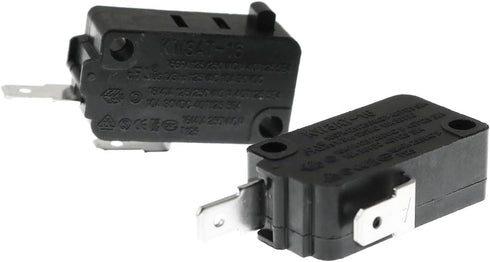

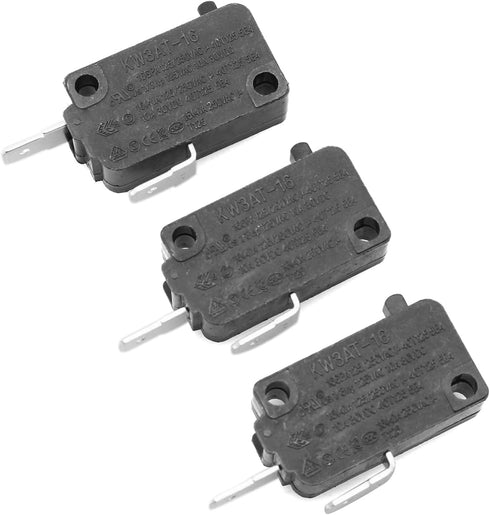

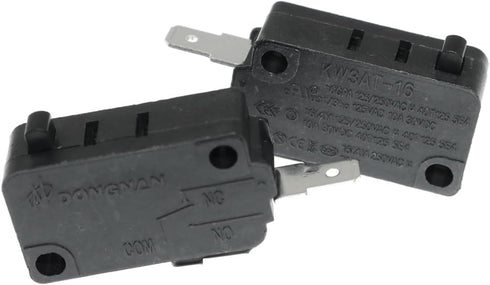

3PCS Micro Switch KW3AT-16A Replacement Part for Microwave Oven Door, High Temperature Resistance

3PCS Micro Switch KW3AT-16A Microwave Oven Door Switch Replacement Part High Temperature Resistance

3PCS Micro Switch KW3AT-16A Replacement Part for Microwave Oven Door, High Temperature Resistance

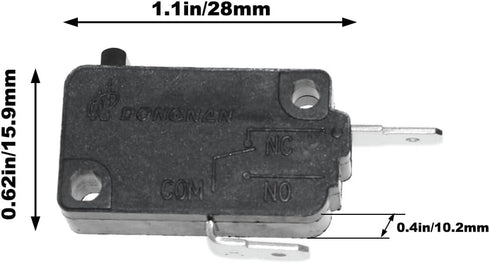

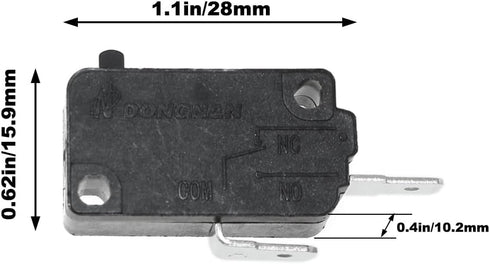

Name: Micro switch KW3AT-16A Material: PBT Size: 27.8 x 15.9 x 10.2mm/1.09 x 0.62 x 0.4in Rating: 5(2)A/10(3)A/16(4)A/21(4)A/25(10)A/125/250AVC/4A/6A/10A/12A30VDC Temperature grade: 10T200 Electrical life: 5E4 Insulation resistance: 100Mohm MIN Withstand voltage: AC1000V/3750V Do not open the door while the microwave is running! Close the door and then start the microwave, or turn off the power to the microwave door and then open the microwave door. This can extend the life of the microwave door switch. Please unplug! For safety reasons, turn off all power and wear gloves to protect yourself before servicing.

Key Features

• ✅ The protrusion of the shell increases the creepage distance between the terminal and the shell and increases the withstand voltage. Range -40 to 125 degree Celsius.
• ✅ The buttons are made of high temperature-resistant solid material, which resists high-temperature softening caused by high-current operation, and the switch operation is always stable.
• ✅ Normally open (terminal COM is connected to the NC side, the circuit is open; when the button is pressed, terminal COM is connected to the NO side, the circuit is closed); Normally closed (terminal COM is connected to the NC side, the circuit is closed; when the button is pressed, terminal COM is connected to the NO terminal, the circuit is open).
• ✅ Rated current 125V/250V, resistance: 30m-100m ohm.
• ✅ Application environment: large micro switch, long life, large current, high temperature resistance, widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, smart home and other fields, such as clothes rack limit switch, Resistance switch, oven door control switch, air purifier safety switch, etc.
